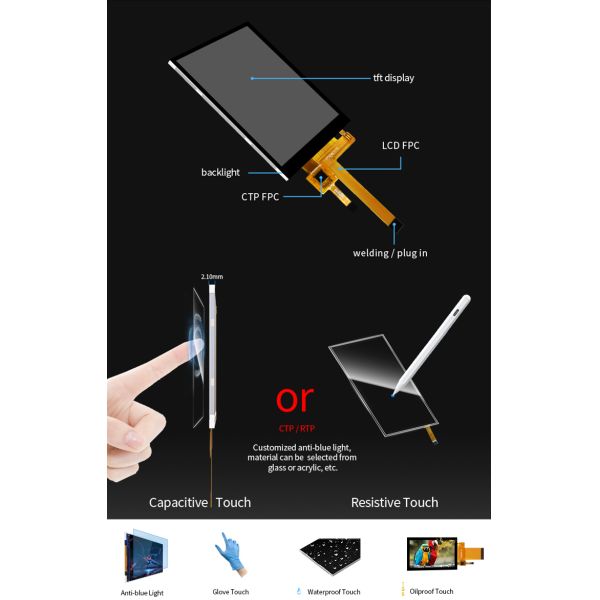

Polcd 2.4" TFT Mini Small Size 2.4 inch IPS Display Module ST7789V3 240x320 LCD Screen with Touch Panel

Brand Name : Polcd

Model Number : P024C115-CTP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 2.4 inch 240x320

Interface : 4 Wire SPI

Display area : 36.72(H)x48.96(V)mm

Driver IC : ST7789V3

Brightness (cd/m²) : 260 nit

Viewing Angle : 12 o'clock

PIN : 10 pin

Contact Now

Description:

2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.


Parameter:

Model P024C115
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 51(H)x153(V)um
Pins 10 Pins
Outline Dimension 42.72x60.26x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 250:1
PIN 10 pin
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V3
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT displays are widely used in various products, including:


1. Handheld devices: 2.4 inch lcd are commonly used in handheld devices such as smartphones, mp3 players, and GPS devices. The displays provide clear and detailed images while remaining compact and lightweight.

2. Digital cameras: Many digital cameras use 2.4 inch TFT displays as their primary viewing screens. The displays allow users to view their photos and videos with high resolution and clarity.

3. Portable gaming consoles: 2.4 inch IPS Screen are also commonly used in portable gaming consoles such as the Nintendo DS and PSP. The displays provide a vibrant and immersive gaming experience while remaining small and portable.

4. Medical devices: Medical devices such as glucose meters and blood pressure monitors use 2.4 inch TFT displays to display important health information to patients and healthcare professionals.

5. Industrial control systems: 2.4 inch TFT module are used in various industrial control systems such as process control systems and machine interface applications. The displays provide real-time information and user interface control capabilities.

6. Automotive displays: Many automotive displays, such as infotainment systems and dashboard displays, use 2.4 inch TFT displays to provide drivers and passengers with important information and entertainment options.
