Description:
2.8 inch IPS TFT LCD are commonly used in various electronic devices, including handheld gaming devices, industrial controllers, portable multimedia players, medical devices, and automotive displays, among others. Their compact size, high-quality display performance, and low power consumption make them a reliable and versatile display solution for various applications. The customizable display driver in some models also allows for greater flexibility and control over the display performance and features, making them suitable for a wide range of applications.
Parameter:
|
Model
|
P028B055-IPS
|
|
Screen Size
|
2.8 inch
|
|
Number of Pixel
|
240RGB(H)x320(V)
|
|
Display area
|
43.20(H)x57.60(V)mm
|
|
Pixel pitch
|
0.06(H)x0.18(V)mm
|
|
Pins
|
15 pin
|
|
Outline Dimension
|
50.00x69.20x2.30mm
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally Black
|
|
Viewing Direction(eye)
|
ALL
|
|
Display Color
|
262K
|
|
Luminance(cd/m2)
|
300 nit
|
|
Contrast Ratio
|
800:1
|
|
Interface
|
4-wire SPI
|
|
Back-light
|
LED Side-light type
|
|
Drive IC
|
ST7789V
|
|
Operation Temperature
|
-20~70℃
|
|
Storage Temperature
|
-30~80℃
|
Customization options:
Cover Glass: Manufacturers may offer the option to add a protective cover glass to the display panel to protect it from scratches, dust, and other contaminants.
Backlight Brightness: Manufacturers may offer the option to adjust the backlight brightness of the display panel to meet specific application requirements. This can help optimize the display performance for different lighting conditions.
Display Driver Settings: Manufacturers may offer the option to modify the display driver settings, such as gamma correction, color temperature, and contrast, to fine-tune the display performance for specific applications.
Touch Interface: Manufacturers may offer the option to add a touch interface to the display panel, allowing for interactive input and control. The touch interface may use resistive, capacitive, or other touch technologies.
Interface Type: Manufacturers may offer the option to choose from different interface types, such as the 8-bit or 16-bit parallel interface, SPI (Serial Peripheral Interface), or I2C (Inter-Integrated Circuit).
Viewing Angle: Manufacturers may offer the option to customize the viewing angle of the display panel, optimizing the display performance for specific applications and environments.
Temperature Range: Manufacturers may offer the option to customize the temperature range of the display panel, making it suitable for use in extreme temperature environments.
Overall, customization options for 2.8 inch IPS TFT LCDs can help optimize the display performance and functionality for specific applications, providing a reliable and versatile display solution.
|
|

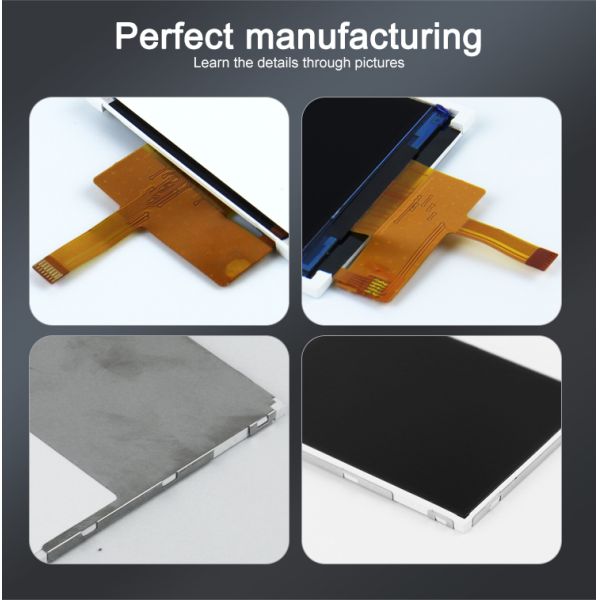

Polcd 2.8-Inch Resolution 240*320 Spi Interface TFT Graphic LCD Display Module for Various Applications Images
|
